ANYCUBIC Photon Mono 4 Ultra AE Version LCD 3D Printer 7" 10K High Precision 3D Printing 2.2L Build Volume 236mm*231mm*430mm
$278.99
Final Price - Includes Free Tracked Shipping
Calculating best shipping rates...
Worldwide TrackingFree tracked shipping
Hassle-Free Returns30-day return policy
Product Details
SPECIFICATIONS
Auto Leveling: no
Bed Temp: N
Brand Name: ANYCUBIC
CE Certification: Yes
Certification: CE
Consumables Diameter: N
Diameter Temp: N
File Format: ALL
Fliament: UV Resin
High-concerned chemical: none
Interface Type: USB
Language: Supports 8 languages
Maximum Print Size: 6.043.426.48inch (LWH)
Molding Technology: LCD
Nozzle Diameter: N
Operating System: Photon Mono 4 Ultra
Origin: Mainland China
Precision: 10K+ 9024x5120px
Slice Software: Anycubic Photon Workshop
Slice Thickness: 0.02-0.15mm
Voltage: 110-220V
Wireless Connectivity: none

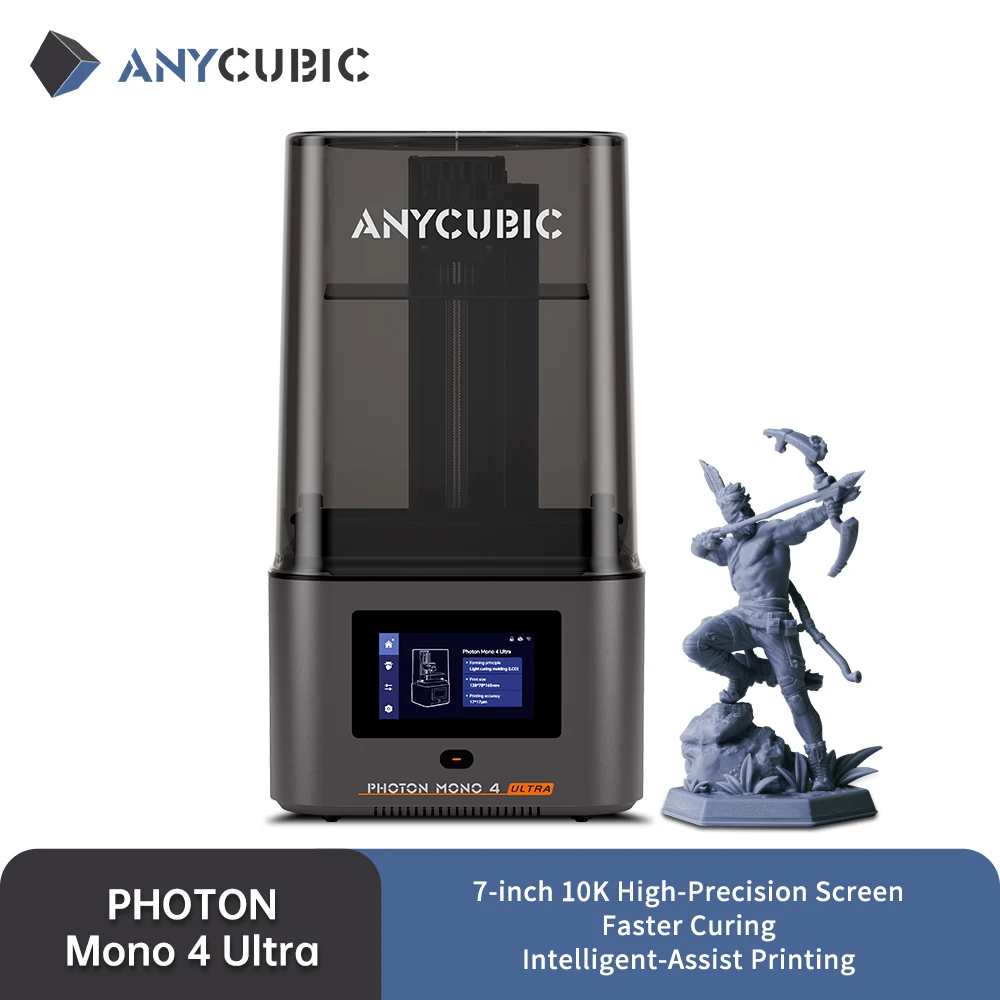

ANYCUBIC Photon Mono 4 Ultra AE Version
Features:
●10K high-precision, almost detail-perfect printing , precision increases by 105%
●Faster curing, intelligent-assist printing
●Uses advanced COB light source integrated with Fresnel lens
●HD Touchscreen with 8 Languages
●Print speed 80mm/h , 0.1mm layer with high standard resin ; print speed 120mm/h , 0.1mm layer with high speed resin 2.0
Specifications:
●Z Axis：Single liner with 20μm accuracy
● Build Platform: Laser engraving aluminum alloy
● Exposure Screen: 7" monochrome
●LCD Resolution：10K (9024*5120px)
● Light Source: COB Light Source and Fresnel Lens and Factory Algorithm Calibration
● Control Panel: 4.3" TFT touch-control
● Data Input: USB-A 2.0, WIFI
● Machine Leveling: 4-point manual leveling
● Printing Speed 1: 80mm/h peek speed(Standard Resin 0.1mm layer height)
● Printing Spee2: 120mm/h peek speed(High Speed Resin 0.1mm layer height)
● Printing Dimensions: 6.043.426.48in./153.487.165mm (HWD)
● Product Dimensions:236mm231mm430mm/ 9.299.0916.93in.(HWD)
● Machine Weight: 5KG/11lb.
●Maximum print volume：2.2L/74.4oz.
Outsmart, Outstart
10K High-Precision | Faster Curing | Intelligent-Assist Printing

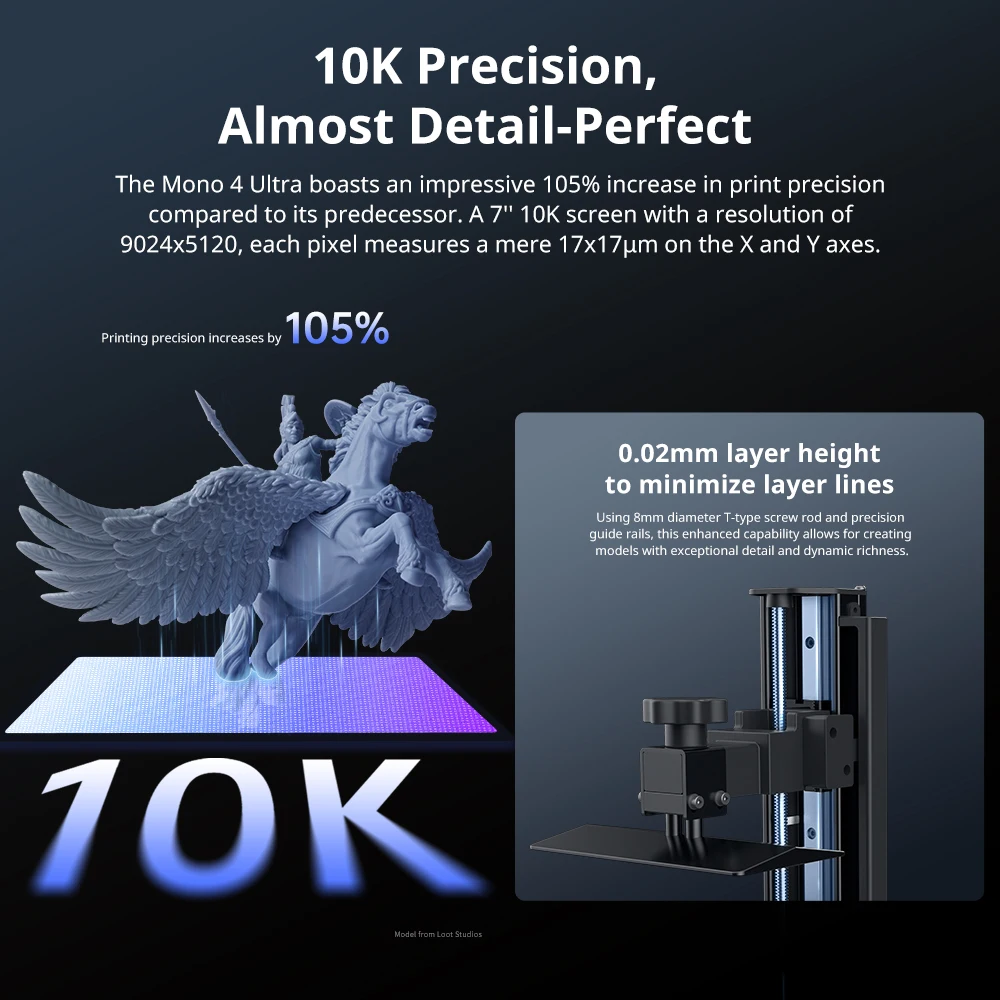

10K Precision, Almost Detail-Perfect
*The Mono 4 Ultra AE Version boasts an impressive 105% increase in print precision compared to its predecessor. A 7" 10K screen with a resolution of 9024x5120, each pixel measures a mere 17x17μm on the X and Y axes
*0.02mm layer height to minimize layer lines. Using 8mm diameter T-type screw rod and precision guide rails, this enhanced capability allows for creating models with exceptional detail and dynamic richness.

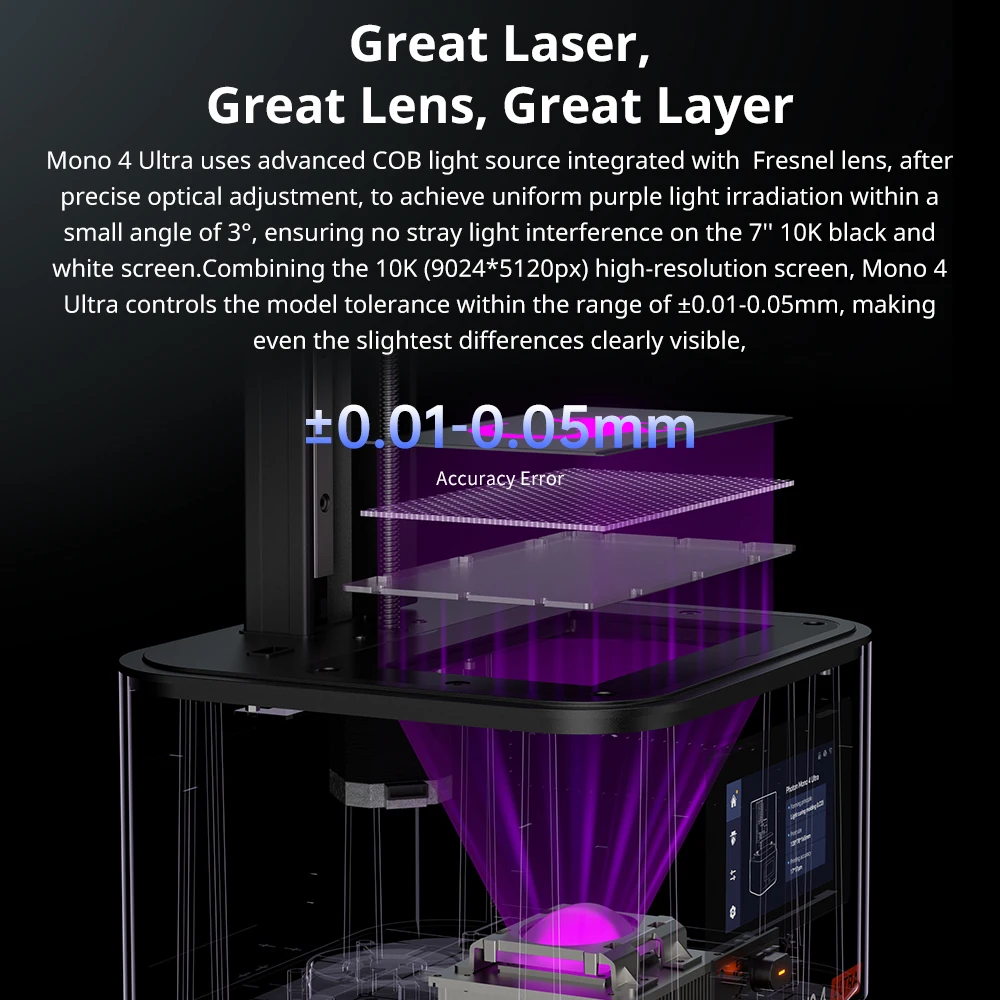

Great Laser, Great Lens, Great Layer
Mono 4 Ultra AE Version uses advanced COB light source integrated with Fresnel lens, after precise optical adjustment, to achieve uniform purple light irradiation within a small angle of 3, ensuring no stray light interference on the 7" 10K black and white screen. Combining the 10K (9024 5120px) high-resolution screen, Mono 4 Ultra controls the model tolerance within the range of 0.01-0.05mm, making even the slightest differences clearly visible, ensuring that every detail of the model is accurately carved.
Consistent, Even on All Layers
With the Light Uniformity Algorithm, each device undergoes rigorous screen energy calibration, the light uniform rate reaches >=90%. The algorithms adjust energy points outside the dynamic range, precisely controlling curing light energy. This reduces dimensional errors in each printed layer, ensuring consistent printing.
Level Up & Speed Up
*It's the Latest ACF Film, not Luck Release film coating improvements
* Intelligent Release Algorithm Save 40% on print time, boost 100% of your spirit.

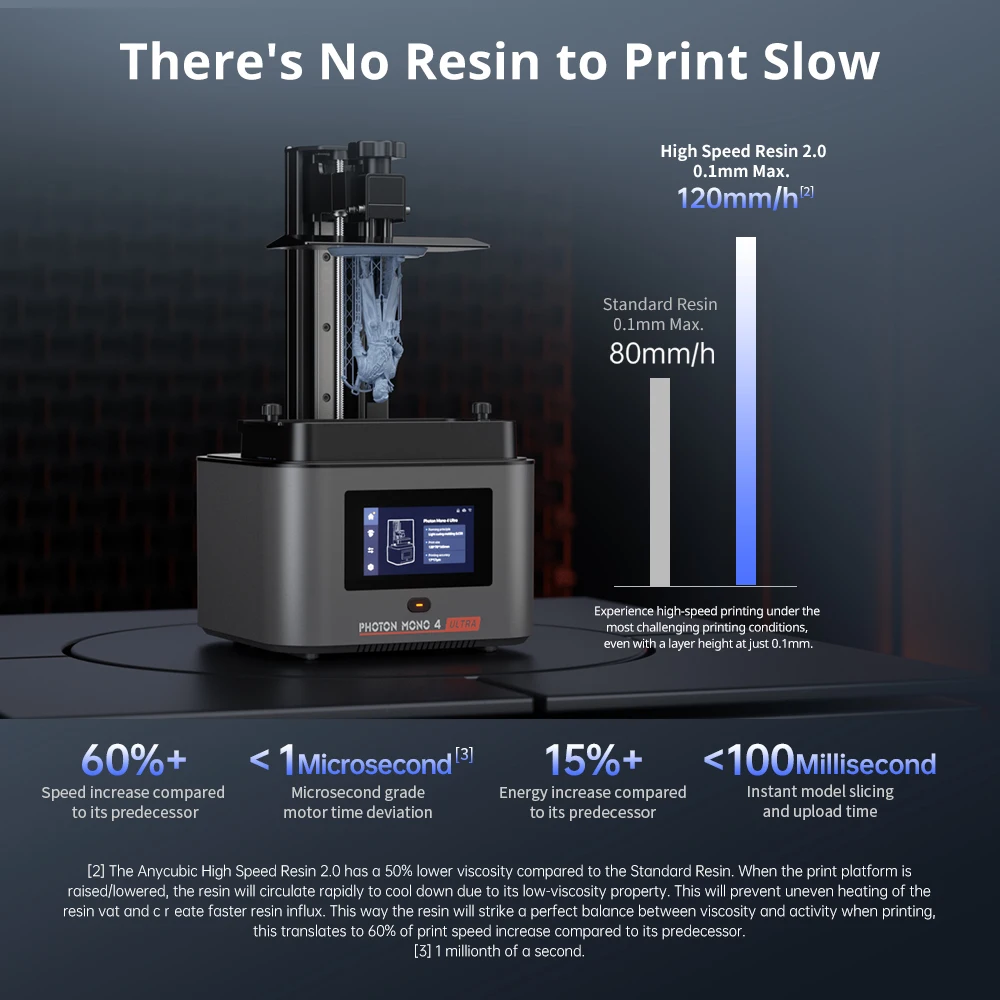

There's No Resin to Print Slow
*High Speed Resin 2.0 0.1mm Max 120mm/h
*Standard Resin 0.1mm Max 80mm/h
*Experience high-speed printing under the most challenging printing conditions, even with a layer height at just 0.1mm.

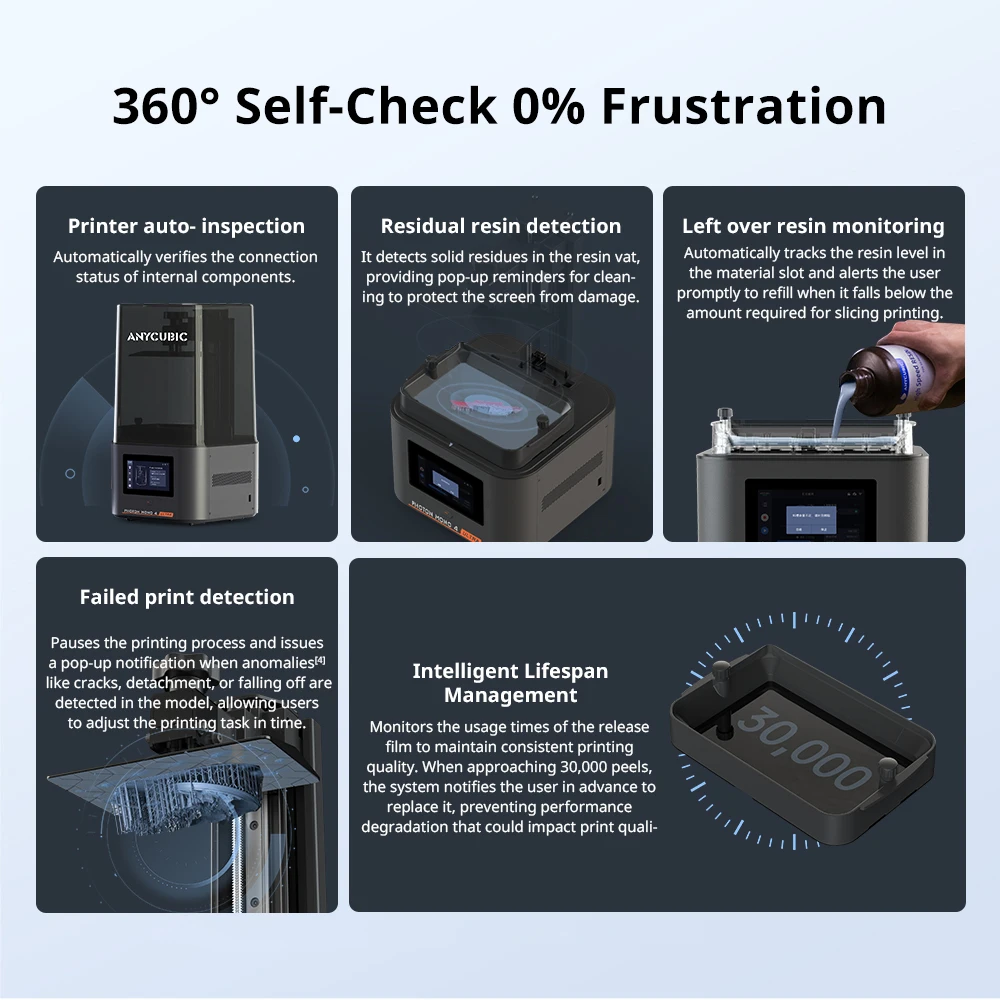

360°Self-Check. 0% Frustration
Printer auto- inspection | Residual resin detection | Left over resin monitoring | Failed print detection | Intelligent Lifespan Management
4-Point Leveling Efficiency
*Every Mono 4 Ultra AE Version printer was assembled, calibrated, tuned, andtested before shipment. So when you received the printer,simply unbox and start printing! (Leveling is needed before printing.)
HD Touchscreen with 8 Languages
4.3-inch high-definition screen, all-new UI design, simple operation, supports 8 languages, while providing a friendly and comfortable interactive experience.
Activated Carbon Air Purifier
The built-in high-density activated carbon filter has a thickness of 18 mm and a weight of 17 grams. It can effectively adsorb odor molecules generated during the 3D printing process, improving the air quality in the area. (This configuration requires additional optional purchase)
Breakthrough in Resin Technology
The Anycubic App
Multi-device sync-up: Whether it's the website, slicing software, or printer, simply log in with the same account to easily achieve seamless cross-platform connectivity.
Cloud printing: Download the Anycubic App to directly access the Makeronline online model library on your smart phone, initiating print tasks through the cloud. Additionally, a cloud printing parameter library is available,recommending optimal print parameters based on various resins.
